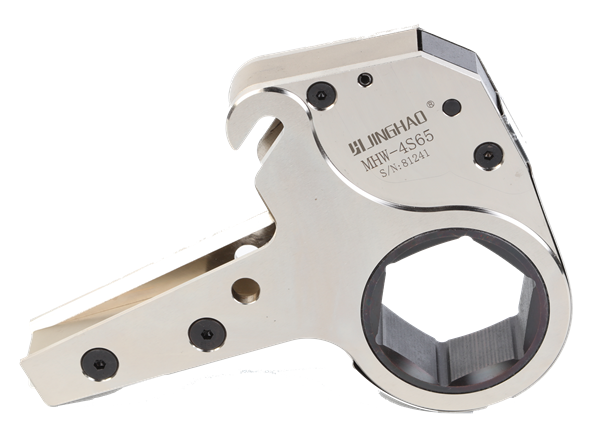

LOW/XLCT系列超薄中空型液压扭矩扳手工作头、
每个型号的LOW/XLCT系列中空型液压扭矩扳手动力头都有一整套的工作
头与其对应，涵盖了这个型号的动力头所能提供的扭矩范围内所有尺寸的螺栓。
为螺栓选取合适的工作头的时候要注意螺栓和墙边的距离要大于工作头内六角

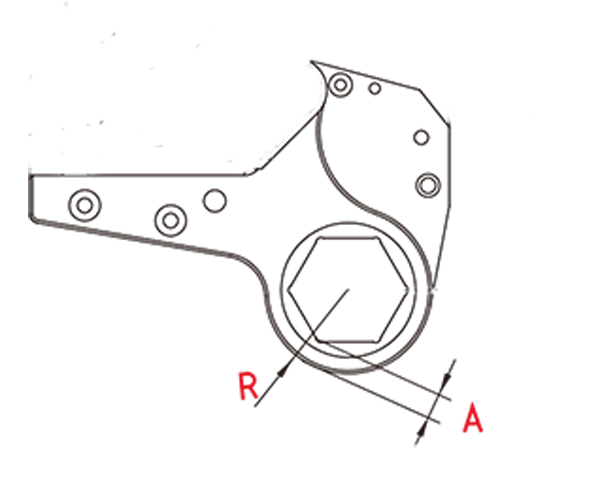

边与工作头外缘的距离。要特别注意螺栓与螺栓之间是否有足够的空间，下表
中的R和A值能帮助您选择到合适的工作头。
液压扭矩扳手工作头选型表
2LOW(XLCT) | 4LOW (XLCT) | 8LOW (XLCT) | 14LOW (XLCT) | 30LOW (XLCT) | |||||||||||||||
型号 | R | A | 最大扭矩 | 型号 | R | A | 最大扭矩 | 型号 | R | A | 最大扭矩 | 型号 | R | A | 最大扭矩 | 型号 | R | A | 最大扭矩 |
2LOW-19 | 27 | 16 | 2328 | 4LOW-34 | 36 | 16 | 2510 | 8LOW-41 | 46 | 22 | 10941 | 14LOW-50 | 60 | 31 | 18521 | 30LOW-85 | 78 | 28 | 41882 |
2LOW-22 | 27 | 14 | 2328 | 4LOW-36 | 36 | 15 | 2510 | 8LOW-46 | 46 | 19 | 10941 | 14LOW-55 | 60 | 28 | 18521 | 30LOW-90 | 78 | 27 | 41882 |
2LOW-27 | 27 | 11 | 2328 | 4LOW-41 | 39 | 15 | 5021 | 8LOW-50 | 46 | 17 | 10941 | 14LOW-60 | 60 | 25 | 18521 | 30LOW-95 | 83 | 28 | 41882 |
2LOW-30 | 29 | 12 | 2328 | 4LOW-46 | 42 | 15 | 5858 | 8LOW-55 | 50 | 18 | 10941 | 14LOW-65 | 60 | 22 | 18521 | 30LOW-100 | 83 | 25 | 41882 |
2LOW-32 | 29 | 11 | 2328 | 4LOW-50 | 44 | 15 | 5858 | 8LOW-60 | 52 | 17 | 10941 | 14LOW-70 | 60 | 19 | 18521 | 30LOW-105 | 89 | 28 | 41882 |
2LOW-34 | 31 | 11 | 2328 | 4LOW-55 | 46 | 14 | 5858 | 8LOW-65 | 55 | 17 | 10941 | 14LOW-75 | 63 | 19 | 18521 | 30LOW-110 | 89 | 25 | 41882 |
2LOW-36 | 31 | 10 | 2328 | 4LOW-60 | 50 | 15 | 5858 | 8LOW-70 | 58 | 17 | 10941 | 14LOW-80 | 66 | 19 | 18521 | 30LOW-115 | 95 | 28 | 41882 |
2LOW-41 | 34 | 10 | 2328 | 4LOW-65 | 53 | 15 | 5858 | 8LOW-75 | 60 | 17 | 10941 | 14LOW-85 | 69 | 19 | 18521 | 30LOW-117 | 95 | 27 | 41882 |
2LOW-46 | 37 | 10 | 2328 | 4LOW-70 | 56 | 15 | 6474 | 8LOW-80 | 63 | 16 | 10941 | 14LOW-90 | 72 | 20 | 18521 | 30LOW-120 | 95 | 25 | 41882 |
2LOW-50 | 40 | 11 | 2328 | 4LOW-75 | 59 | 15 | 6474 | 8LOW-85 | 66 | 16 | 10941 | 14LOW-95 | 74 | 19 | 18521 | 30LOW-125 | 101 | 29 | 41882 |
2LOW-55 | 43 | 11 | 2328 | 4LOW-80 | 61 | 15 | 6474 | 8LOW-90 | 69 | 17 | 10941 | 14LOW-100 | 77 | 19 | 18521 | 30LOW-130 | 101 | 26 | 41882 |
2LOW-60 | 46 | 11 | 2414 | 8LOW-95 | 71 | 16 | 10941 | 14LOW-105 | 80 | 19 | 18521 | 30LOW-135 | 104 | 26 | 41882 | ||||
8LOW-100 | 75 | 17 | 11774 | 14LOW-110 | 83 | 19 | 18521 | 30LOW-140 | 110 | 29 | 41882 | ||||||||
8LOW-105 | 78 | 17 | 11774 | 14LOW-115 | 87 | 20 | 18521 | 30LOW-145 | 110 | 26 | 41882 | ||||||||
14LOW-117 | 87 | 19 | 18521 | 30LOW-150 | 116 | 29 | 41882 | ||||||||||||
30LOW-155 | 116 | 26 | 41882 | ||||||||||||||||
30LOW-160 | 128 | 36 | 44593 | ||||||||||||||||
30LOW-165 | 128 | 33 | 44593 | ||||||||||||||||
30LOW-170 | 128 | 30 | 44593 | ||||||||||||||||
30LOW-175 | 128 | 27 | 44593 | ||||||||||||||||
